Ceiling Dehumidifier

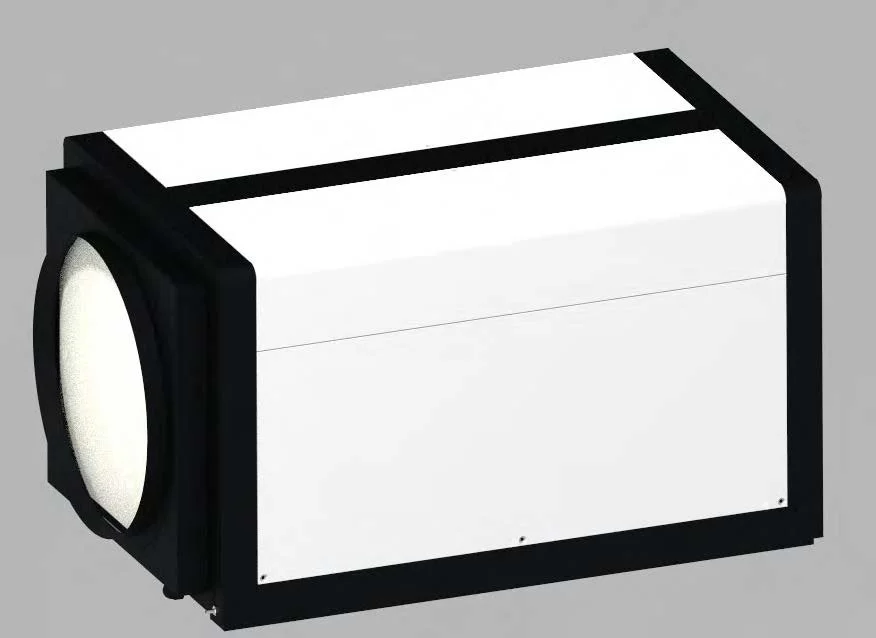

Keep the air clean and comfortable with the PBD360P ceiling-mounted dehumidifier. This powerful unit offers efficient, high-capacity dehumidification for large spaces up to 2300 square feet. With its concealed in-ceiling design and quiet operation, the PBD360P works unobtrusively to control humidity.
Product Features
The PBD360P dehumidifier combines an attractive, durable design with powerful performance. It features a precise humidity sensor for accurate control, along with a high-efficiency fan that delivers strong airflow quietly. The unit is equipped with an international brand compressor that provides excellent dehumidification. It also displays current temperature/humidity readings and automatically diagnoses faults. The PBD360P offers flexible drainage with its remote pumping function and options for gravity or pump drainage. With its novel design, quiet operation, and multiple smart functions, this dehumidifier provides reliable, efficient humidity control.
Function Features
The PBD360P provides versatile controls and smart functions for optimal performance. It allows continuous humidity adjustment from 10-98% RH and forced dehumidification when set to 10% RH. The unit automatically shuts down and alarms when the water tank is full, and has a 1-24 hour timer. It includes high/low voltage protection for safe, reliable operation along with an automatic defrost function for low temps and a cleaning reminder. The dehumidifier has an RS485 interface that enables remote monitoring and control of the humidity setting, on/off function, and operating status. With its wide humidity control range, protective features, and remote capabilities, the PBD360P delivers intelligent humidity management.
-
Equipped with an optimized heat exchanger, using inner-threaded copper tubes, the dehumidification effect is stronger, and the energy efficiency of heat exchange is greatly improved；
-
Internationally famous brand compressor; long life, high energy efficiency; with super dehumidification effect；
-
Small size; large air volume; high air pressure; low noise; long life; energy saving and high efficiency;
-
86-type touch buttons, microcomputer intelligent control, simple and convenient operation, operating status and parameters can be monitored at any time; which makes remote control more convenient;
| Specification | Detail |
|---|---|
| Model | PBD360P |
| Power Source | 220V~60Hz |
| Dehumidification Capacity(65°F/60%RH) | 135 Pints/D |
| Dehumidification Capacity(80°F/60%RH) | 210 Pints/D |
| Dehumidification Capacity(86°F/80%RH) | 360 Pints/D |
| Dehumidification Capacity(95°F/90%RH) | 420 Pints/D |
| Power(65°F/60%RH) | 1730W |
| Power(80°F/60%RH) | 2100W |
| Power(86°F/80%RH) | 2500W |
| Power(95°F/90%RH) | 2960W |
| Air Volume | 1500m3/h |
| Refrigerant | R410a |
| Electric shock resistance | I type |
| IP Grade | Ip21 |
| Maximum allowable pressure on high pressure side and low pressure side | 4.4Mpa/1.5Mpa |
| Suction/exhaust side allows working overpressure | 4.4Mpa |
| Maximum working pressure of heat exchanger | 4.4Mpa |
| Dimension (including vent) | 18" X 22" X 20.3" |
| Weight (Net Weight) | 85 lbs |
| Air inlet pipe installation specifications | 16" |
| Exhaust duct installation specifications | 12" |
| Air intake mode | Front in, back out |
